The following video is to introduce SMD Taping Machine with CCD detection.

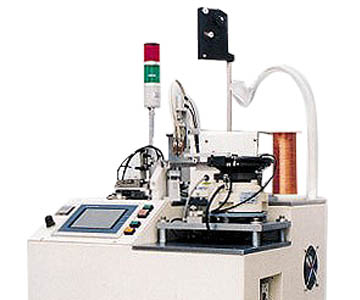

SMD Taping Machine with CCD detection TP-3800
1. The width can be quickly adjusted from 8 to 16 mm without the need for any tools.
2. The automatic peel-off heat-sealing top belt allows for easy handling and replacement of small, high-quality parts.
A negative pressure vacuum tube can be connected under the conveyor belt track to prevent small parts from jumping.
Two sets of pressure knives independently control pressure and temperature to ensure optimal sealing.
3. Intermittent or continuous modes can be freely selected and switched.
4. The track is extremely wear-resistant, and the anodized hardening treatment (HRc70) extends its service life.
5.The seamless dynamic heat-pressing design increases packaging speed and ensures stable sealing.
6.It adopts a modular design and PLC programmable control.
7. Designed for low power consumption, with an average power consumption of 80W during continuous use (20W for self-adhesive).
